What is a 3D Gaussian Splatting?

3D Gaussian Splatting is a revolutionary method for novel-view synthesis of scenes captured with photos or videos. As a class of Radiance Field methods (like NeRFs), Gaussian Splatting offers several advantages:

• Faster training at equal quality
• Quicker rendering
• Better or similar quality compared to other methods
• Easier to understand and postprocess

This tutorial provides a beginner-friendly introduction to 3D Gaussian Splats, explaining how to train and visualize them.

Gaussian Splatting Explained

3D Gaussian Splatting, like NeRFs or photogrammetry methods, creates a 3D scene from 2D images. With just a video or set of photos, you can generate a 3D representation, enabling novel view synthesis - rendering the scene from any angle.

Here's an example using 750 images of a plush toy, recorded with a smartphone:

After training, the model becomes a pointcloud of 3D Gaussians. Here's a visualization of the pointcloud:

What are 3D Gaussians?

3D Gaussians are a generalization of 1D Gaussians (the bell curve) to 3D space. They are essentially ellipsoids in 3D space, characterized by:

• A center
• A scale
• A rotation
• "Softened edges"

Each 3D Gaussian is optimized with a view-dependent color and opacity. When blended together, they create a full model that can be rendered from any angle:

How to Train Your Own 3D Gaussian Splatting Models

This step-by-step tutorial will guide you through the process of training your own 3D Gaussian Splatting models.

Step 1: Record the Scene

Recording high-quality input data is crucial for successful 3D Gaussian Splatting. Here are some tips:

• Capture 200-1000 images for optimal results
• Move slowly to avoid blurry frames
• Lock your camera's exposure for consistent lighting
• Use a turntable for small objects (like this one)

Organize your images in a folder structure like this:

📦 $FOLDER_PATH
 ┣ 📂 input
 ┃ ┣ 📜 000000.jpg
 ┃ ┣ 📜 000001.jpg
 ┃ ┣ 📜 ...

Step 2: Obtain Camera Poses

To train a 3D Gaussian Splatting model, you need to know the camera position and orientation for each frame. There are several methods to obtain these:

1. COLMAP: Free, open-source Structure-from-Motion (SfM) software
2. Desktop software: RealityCapture, Metashape (commercial options)
3. Mobile apps: Polycam, Record3D (iOS with LiDAR sensor)

We'll focus on using COLMAP for this tutorial.

Because it is free and open-source, we will show how to use COLMAP to obtain the camera poses.

First, install COLMAP: follow the instructions of the official installation guide.

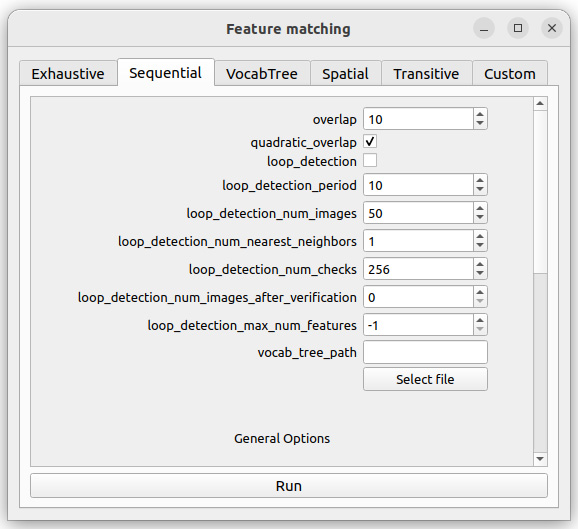

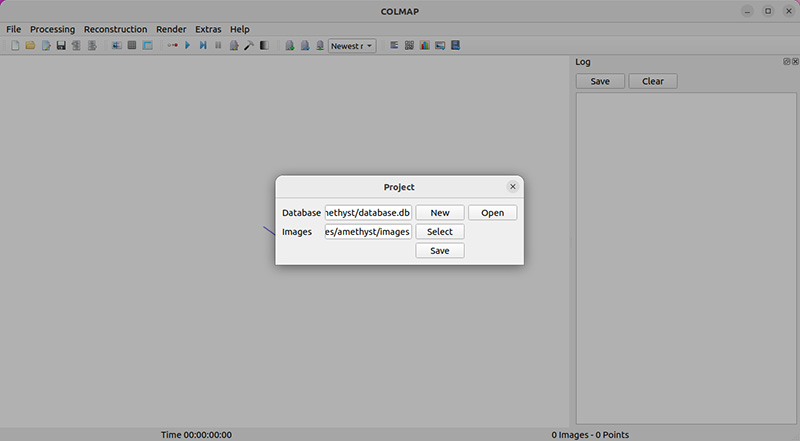

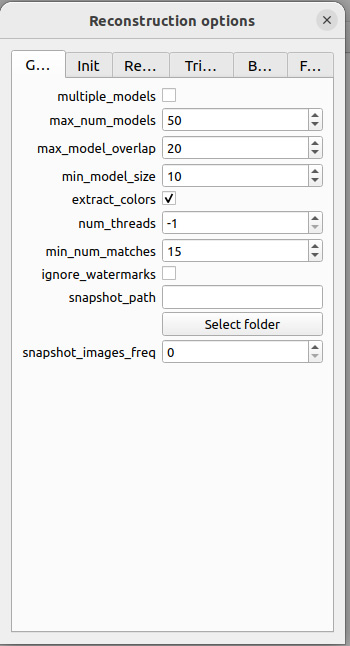

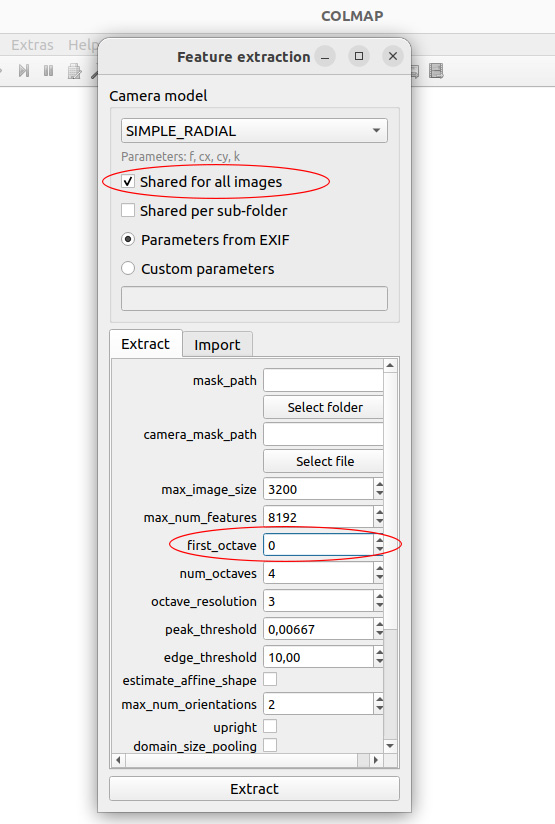

From now on, we suggest two ways to obtain the camera poses: with an automated script, or manually with the GUI.

git clone https://github.com/graphdeco-inria/gaussian-splatting --recursive

python convert.py -s $FOLDER_PATH

The folder structure of your model dataset should now look like this:

📦 $FOLDER_PATH
 ┣ 📂 (input)
 ┣ 📂 (distorted)
 ┣ 📂 images
 ┣ 📂 sparse
 ┃ ┣ 📂 0
 ┃ ┃ ┣ 📜 points3D.bin
 ┃ ┃ ┣ 📜 images.bin
 ┃ ┃ ┗ 📜 cameras.bin

Step 3: Train the 3D Gaussian Splatting Model

Now that we have our camera poses, we can train the 3D Gaussian Splatting model:

1. Clone the official repository:

   git clone https://github.com/graphdeco-inria/gaussian-splatting --recursive

2. Install dependencies:

   pip install plyfile tqdm
   pip install submodules/diff-gaussian-rasterization
   pip install submodules/simple-knn

3. Train the model:

   python train.py -s $FOLDER_PATH -m $FOLDER_PATH/output -w

   The -w option is used for scenes with white backgrounds.

Training typically takes 30-40 minutes for 30,000 steps, but you can visualize an intermediate model after 7,000 steps.

Step 4: Visualize the Model

After training, your folder structure should look like this:

📦 $FOLDER_PATH
 ┣ 📂 images
 ┣ 📂 sparse
 ┣ 📂 output
 ┃ ┣ 📜 cameras.json
 ┃ ┣ 📜 cfg_args
 ┃ ┗ 📜 input.ply
 ┃ ┣ 📂 point_cloud
 ┃ ┃ ┣ 📂 iteration_7000
 ┃ ┃ ┃ ┗ 📜 point_cloud.ply
 ┃ ┃ ┣ 📂 iteration_30000
 ┃ ┃ ┃ ┗ 📜 point_cloud.ply

To visualize your model:

1. Download or build the SIBR viewer
2. Run the viewer:

   SIBR_gaussianViewer_app -m $FOLDER_PATH/output

You'll see a beautiful visualization of your trained 3D Gaussian Splatting model:

Import your model in Blender

Once you have a 3D Gaussian Splatting model, you can import it in Blender using free Blender add-ons.

As presented in this article from CG Channel, the two options for Blender are our experimental add-on and 3DGS Render (now our recommended solution).

Conclusion

3D Gaussian Splatting is a powerful technique for novel view synthesis. This tutorial has guided you through the process of training and visualizing your own models. As the field evolves, we can expect even more exciting applications and improvements to this technology.

Have questions about Gaussian Splatting? Join the discussion:
